A field sensing system that allows you to operate easily and conveniently integrates into your current work space
Perfect for measuring magnetic fields in a wide variety of applications, the Lake Shore Cryotronics F71 and F41 teslameters with FP Series probes offer a new level of precision, convenience, and dependability.
Watch the F41/F71 introductory video
Features:
- TruZero™ technology eliminates the need to re-zero probes
- Superior measurement performance for many scenarios
- TiltView™ touchscreen display for operating simplicity
- Highly configurable probes to suit your application
- Multiple software driver options to ease integration
Case Study using Lake Shore Cryotronics Teslameters

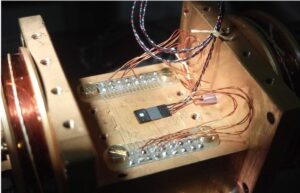

Case Study 2Dex Hall Sensors – Planar Hall Effect Investigation in Cryogenic Environment
University of Cambridge – Quantum Sensors Group
2Dex Hall sensors paired with a Lake Shore teslameter have been demonstrated to provide superior measurements when compared to previous generation gaussmeters and InAs Hall sensors. Measurement errors as a result of offset voltages and the planar Hall effect are eliminated, as well as seeing an improvement in measurement resolution.
Background:
Accurate magnetic field measurement is often a challenge in fundamental research scenarios, particularly when dealing with vector fields in cryogenic environments. Cryogenic conditions rule out many of the clever new monolithic/integrated 3-axis Hall probes that include signal conditioning circuitry in the sensor itself. As for technology specifically designed for cryogenic environments:
Some fluxgates are designed for cryogenic operation but are limited in their ability to measure higher field values and can be quite large compared to the actual sensing area.
SQUID magnetometers are another option, with some researchers even building 3-axis versions to measure vector fields. These instruments are extremely sensitive and useful for measuring small fields. However, these instruments are also limited in their upper field measurement capabilities and can also be relatively large with the added complexity and cost of the support electronics.
Hall sensors therefore are a compelling option due to several factors:
Read the full case study
Useful guides from Lake Shore Cryotronics:
What happened to “gaussmeter”?
